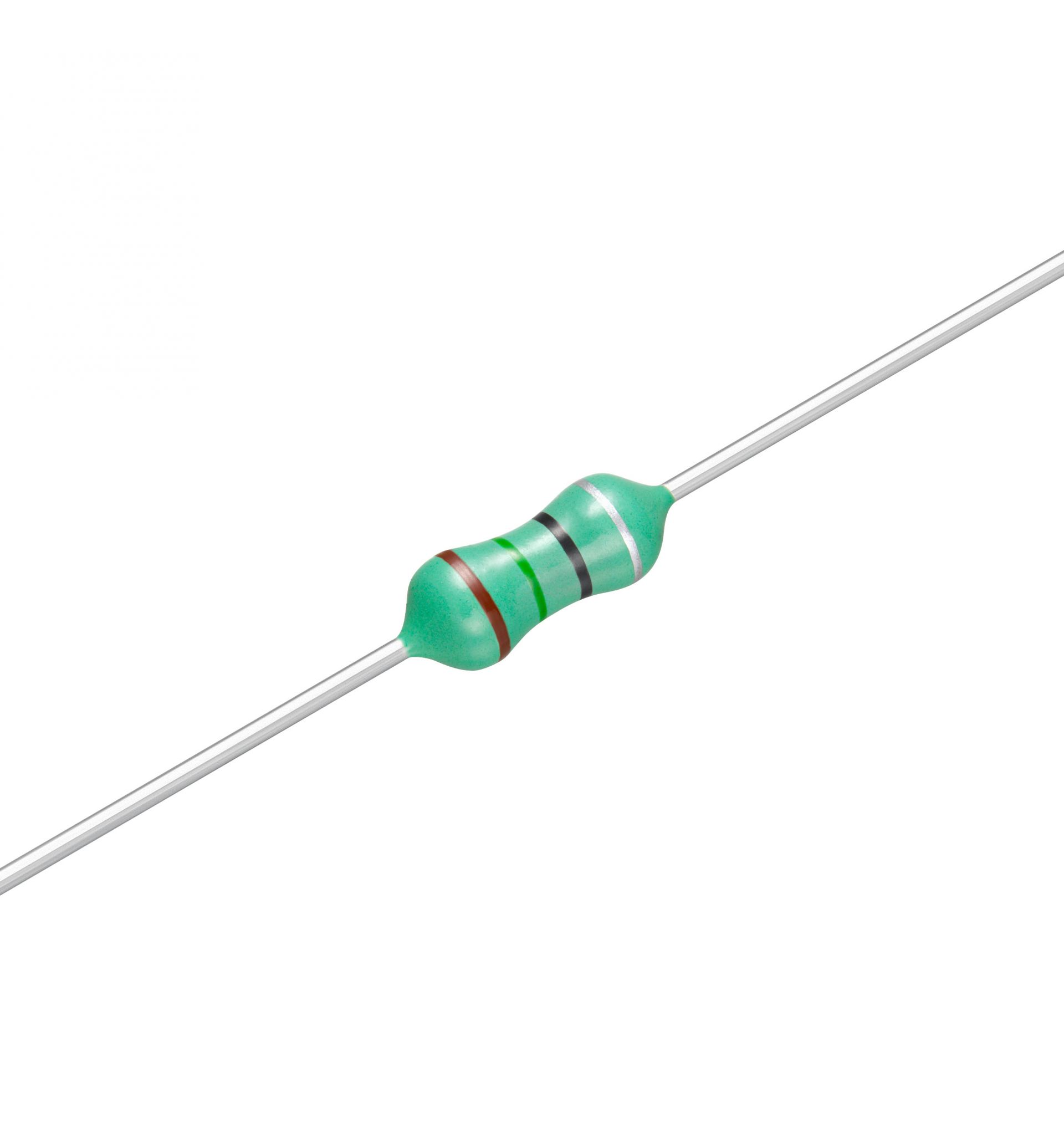

FIXED INDUCTOR (EC)
TYPE: EC22 , EC24 , EC36 , EC38 , EC46
FIXED INDUCTOR
EC TYPE
♦CHARACTERISTICS
-Rated DC Current: It is either the inductance is 10% lower than its initial value in D.C. saturation characteristics or temperature raise becomes △T=20℃ (Ta=20℃), whichever is lower.
-Operating temperature ranges:-20 to +80℃.
-Storage temperature ranges: -40 to +80℃.
-Dielectric with standing voltage:250V AC r.m.s.
♦FEATURES
-Conformal coated inductors.
-Special magnetic core structure contributes to high Q and self-resonant frequencies (S.R.F).
-Treated with epoxy resin coating makes it high reliability.
-Wide inductance range.
-Ideal for auto insertion.

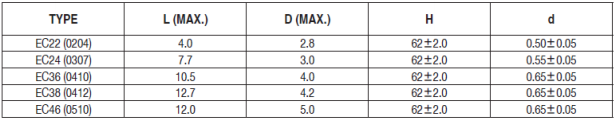

♦DIMENSIONS

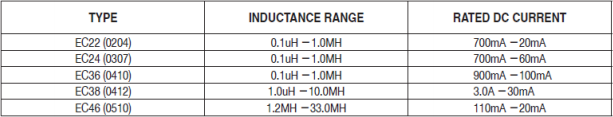

♦RATINGS
♦COLOR CODING
