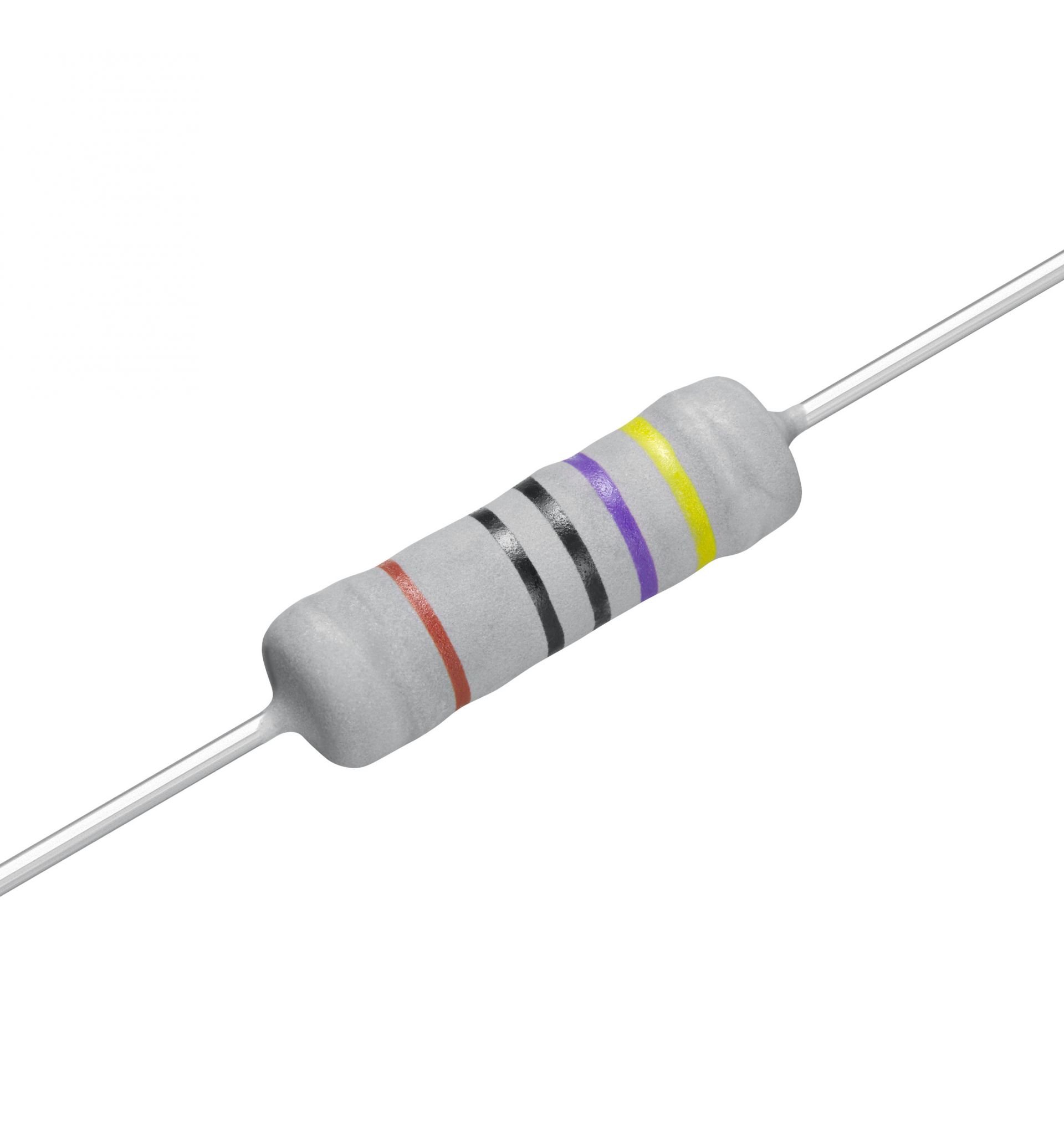

METAL FILM FIXED RESISTOR (FMF)
TYPE: FMF-12 , FMF-25S, FMF-40S , FMF-33S , FMF-25 , FMF-50S , FMF-60S , FMF-50 , FMF-100S , FMF-100 , FMF-200S , FMF-200 , FMF-300S
METAL FILM FIXED RESISTOR
FMF (FLAME-PROOF COATING TYPE)
♦INTRODUCTION
Flame-proof metal film resistors are coated with layers of non-flame lacquer which is resistant to 800℃ high temperature and without causing crack, breakage, or even a fire hazard. SYNTON-TECH’s FMF series are designed to replace metal oxide film resistors and wire wound resistors when small size is needed.
♦FEATURES
-Met American military specification MIL-R-10509F!
-Very low currect noise!
-Board selection of temperature coefficient: ±100ppm, ±50ppm, ±25ppm, ±15ppm, ±10ppm/℃
-Tolerance available: ±5%, ±2%, ±1%, ±0.5%, ±0.25%, ±0.1%, ±0.05%, ±0.01%
-Voltage available: 1/16W, 1/8W, 1/6W, 1/3W, 1/4W, 0.4W, 1/2W, 0.6W, 1W, 2W, 3W
-Major applications are switching power supplies, communication equipments, monitors, testing meters.
![](/userfiles/images/20210208030314724.png)

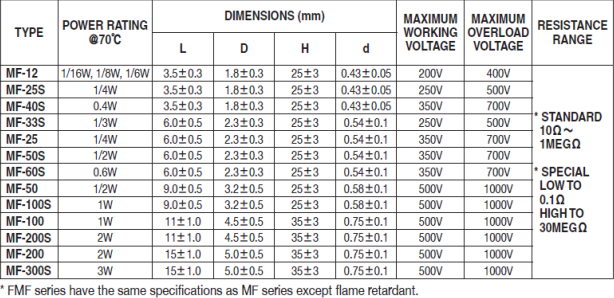

♦SPECIFICATIONS
To fill the function gap of carbon film fixed resistors, metal oxide film resistors or wirewound resistors.
The resistive element is a high contests of AL203 ceramic rod on which a thin film of Ni/Cr alloy is deposited by vacuum sputtering system. Then contact caps are pressed onto the ends of the rod and a helical groove cut through the film to give the required resistance value.
![](/userfiles/images/20210208030314917.png)
To fill the function gap of carbon film fixed resistor, metal oxide film resistor film resistor or wirewound resistors. The resistive element is high contests of AL203 ceramic rod on which a thin film of Ni/Cr alloy is deposited by vacuum sputtering system. Then contact caps are pressed onto the rod and a helical grove cut through the film to give the required resistance value.
