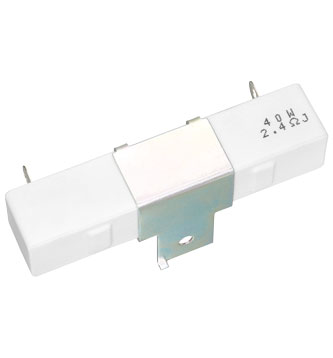

CEMENT POWER RESISTOR (SQHG)
TYPE: SQHG-10 , SQHG-15 , SQHG-20 , SQHG-30 ,SQHG-40
CEMENT POWER RESISTOR
SQP (STANDARD TYPE)
SQM (RADIAL TYPE)
SQT (AXIAL)
SQZ(PCB MOUNTING TYPE)
SQH SQS (CLAMP MOUNTING TYPE)
SQF (FLAT TYPE)
♦INTRODUCTION
Cement resistors are manufactured by winding the ceramic rods with metal alloy resistance wire and put it into
a fireproof ceramic box then concrete with non-flammable and heat-resistant cement.
♦FEATURES
-Heat and flame resistant!
-The completely insulated characteristic is suitable for printed circuit board.
-For high resistance value, the winding core will be replaced by metal oxide film cutting core (RS type).
-High voltage type and non-inductive type are available on request!

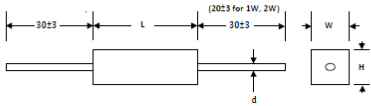

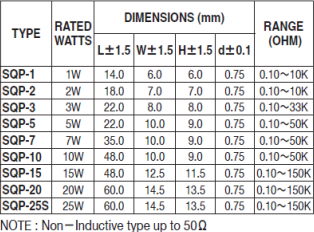

♦SQP

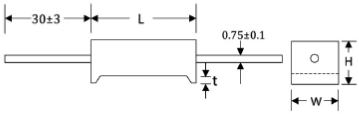

♦SQT

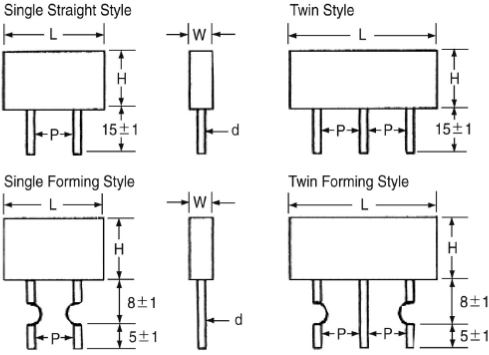

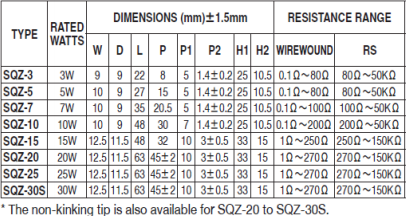

♦SQZ

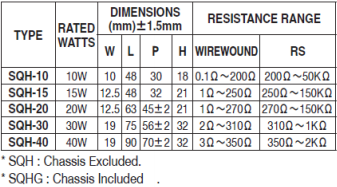

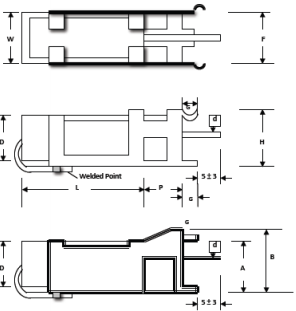

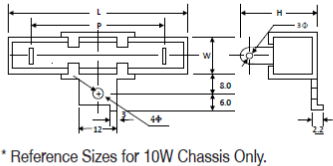

♦SQHG

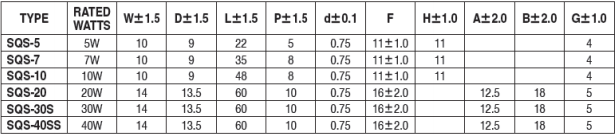

♦SQS

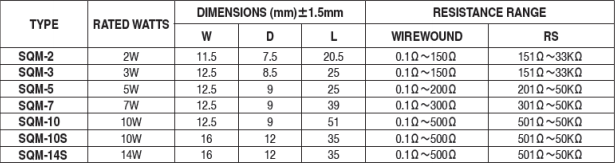

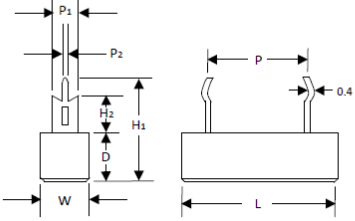

♦SQM
♦FEATURES
-Low inductance.
-Safety flameproof construction.
-Thin lightweight body saves the PCB space considerably.
-Tolerance available: ±10%, ±5%, ±2%

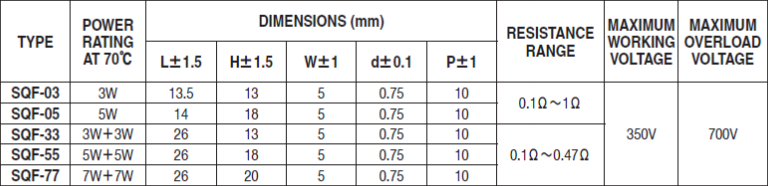

♦SQF
Cement resistors are manufactured by winding the ceramic rods with metal alloy resistance wire and put it into a fireproof ceramic box then concrete with non-flammable and heat-resistant cement.
