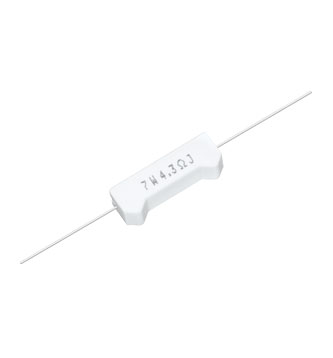

CEMENT POWER RESISTOR (SQT)
TYPE: SQT-5 , SQT-7 , SQT-10
EMENT POWER RESISTOR
SQP (STANDARD TYPE)
SQM (RADIAL TYPE)
SQT (AXIAL)
SQZ(PCB MOUNTING TYPE)
SQH SQS (CLAMP MOUNTING TYPE)
SQF (FLAT TYPE)
♦INTRODUCTION
Cement resistors are manufactured by winding the ceramic rods with metal alloy resistance wire and put it into
a fireproof ceramic box then concrete with non-flammable and heat-resistant cement.
♦FEATURES
-Heat and flame resistant!
-The completely insulated characteristic is suitable for printed circuit board.
-For high resistance value, the winding core will be replaced by metal oxide film cutting core (RS type).
-High voltage type and non-inductive type are available on request!
♦SQP
![](/userfiles/images/20210208033215742.png)
![](/userfiles/images/20210208033215955.png)
♦SQT
![](/userfiles/images/20210208033215174.png)
![](/userfiles/images/20210208033215424.png)
♦SQZ
![](/userfiles/images/20210208033215428.png)
![](/userfiles/images/20210208033215527.png)
♦SQHG
![](/userfiles/images/20210208033216363.png)
![](/userfiles/images/20210208033216734.png)
♦SQS
![](/userfiles/images/20210208033216244.png)
![](/userfiles/images/20210208033216301.png)
♦SQM
![](/userfiles/images/20210208033216151.png)
![](/userfiles/images/20210208033216941.png)
♦FEATURES
-Low inductance.
-Safety flameproof construction.
-Thin lightweight body saves the PCB space considerably.
-Tolerance available: ±10%, ±5%, ±2%
♦SQF
![](/userfiles/images/20210208033217360.png)
![](/userfiles/images/20210208033217158.png)
Cement resistors are manufactured by winding the ceramic rods with metal alloy resistance wire and put it into a fireproof ceramic box then concrete with non-flammable and heat-resistant cement.
