- LOW VALUE WIRE RESISTOR (RW)(MB)

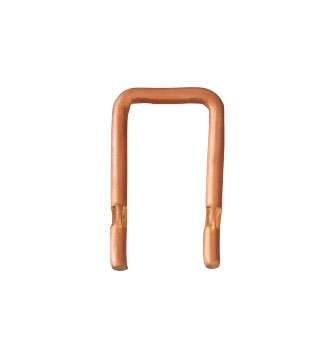

LOW VALUE WIRE RESISTOR (RW)(MB)

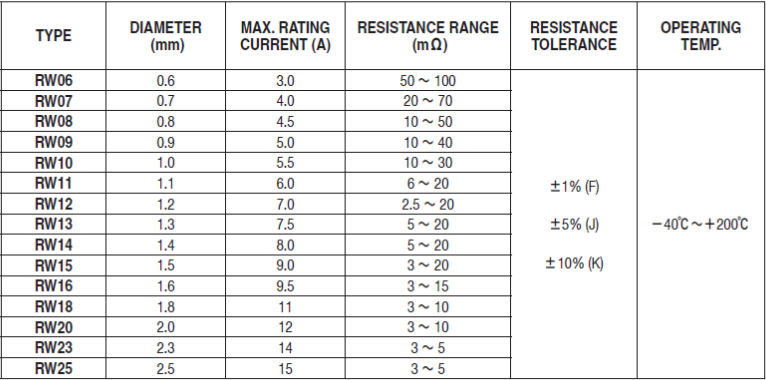

TYPE: RW06 , RW07 , RW08 , RW09 , RW10 , RW11 , RW12 , RW13 , RW14 , RW15 , RW16 , RW18 , RW20 , RW23 , RW25
LOW VALUE WIRE RESISTOR
RW TYPE
♦FEATURES
-The super low resistance(2.5MΩ~100MΩ) is suitable for high power current detection.
-Pitches and heights are adjustable according to mounting conditions.
-All custom-made products.
-Easy soldering.
-Non-inductive type.

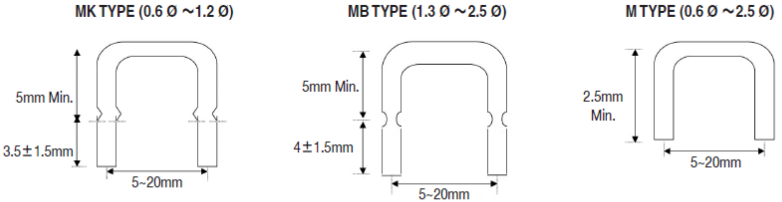

♦DIMENSIONS
The super low resistance (2.5mΩ~100mΩ) is suitable for high power current detection.
Pitches and heights are adjustable according to mounting conditions.
All custom-made products.
Easy soldering.
Non-Inductive type
LOW VALUE WIRE RESISTOR
RW TYPE
♦FEATURES
-The super low resistance(2.5MΩ~100MΩ) is suitable for high power current detection.
-Pitches and heights are adjustable according to mounting conditions.
-All custom-made products.
-Easy soldering.
-Non-inductive type.
♦DIMENSIONS
The super low resistance (2.5mΩ~100mΩ) is suitable for high power current detection.
Pitches and heights are adjustable according to mounting conditions.
All custom-made products.
Easy soldering.
Non-Inductive type
