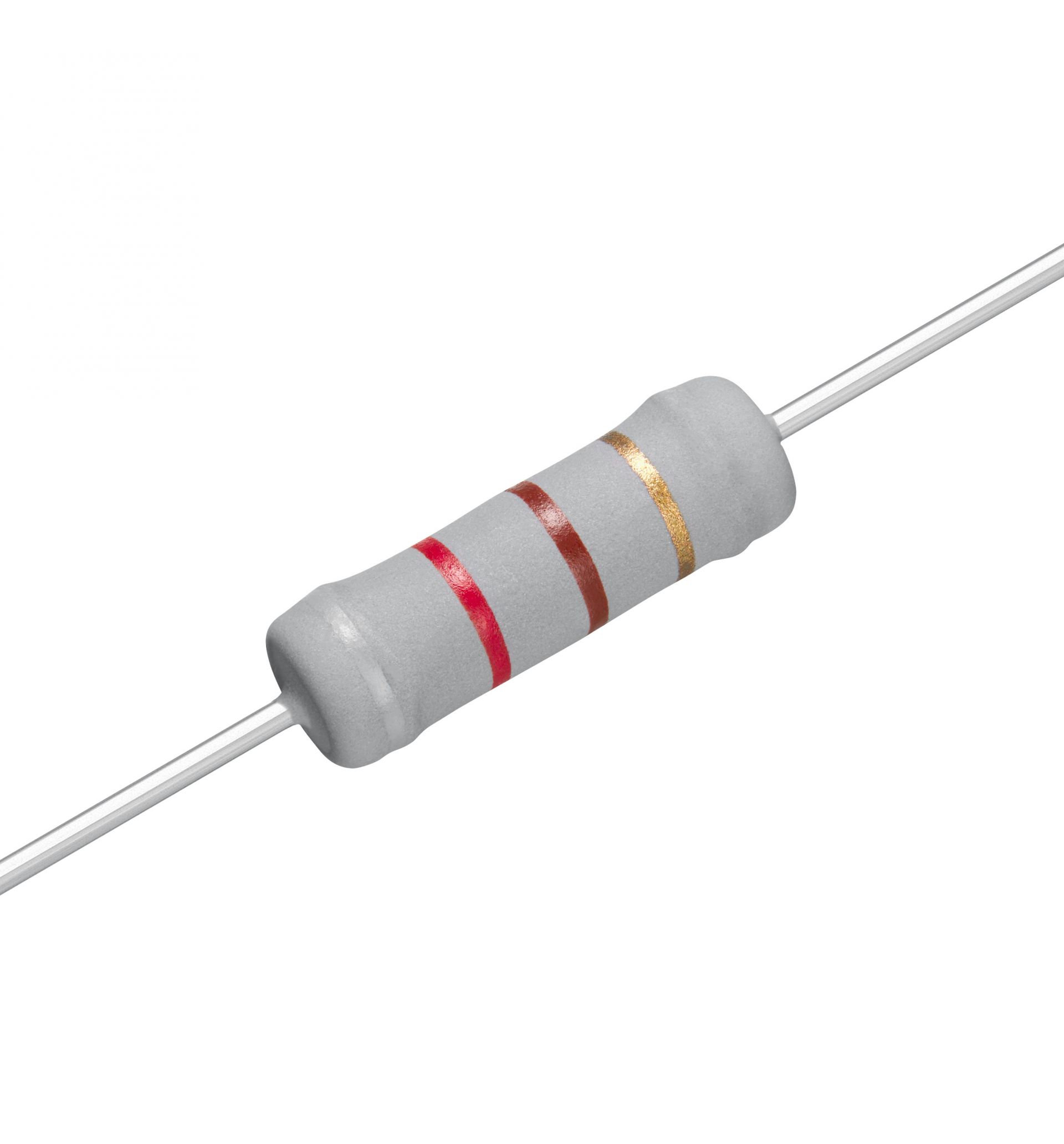

CARBON FILM FIXED RESISTOR (FCF)
TYPE: FCF-12 , FCF25S , FCF-25 , FCF-33S , FCF-50S , FCF-50 , FCF-100SS , FCF-100S, FCF-100 , FCF-200SS , FCF-200S , FCF-200 , FCF-200B , FCF-300S , FCF-300
CARBON FILM FIXED RESISTOR
FCF(FLAME-PROOF COATING TYPE)
♦INTRODUCTION
FCF
Flame-proof carbon film resistors are coated with layers of non-flame lacquer which is resistant to 800℃ high temperature without causing crack, breakage, or even a fire hazard. All SYNTON-TECH's FCF series meet overload tests in accordance with UL specification#1412.
♦FEATURES
-Met the requirements of JIS-C-5201 and MIL-R-22684B!
-The most economic industrial investment!
-Quicker dissipation of heat!
-Lower temperature rise!
-Small shelf life drift!
-Wider resistance range:1Ω~10MegΩ
-Tolerance available:±5%,±2%,±1%
-Wattage available:1/16W,1/8W,1/6W,1/4W,1/3W,1/2W,1W,2W,3W
-Variety of packaging:Bulk,Tape in Box(Ammopack T-26,T-52,T-74),Tape on Reel, Cut-and-Formed.
![](/userfiles/images/20210208031051513.png)
♦SPECIFICATIONS
The earliest and most popular type of resistor is carbon film resistor which can be used in almost all kinds of electronic products.
The resistive element is a high grade ceramic rod which is a homogenous film of pure carbon that is deposited by vacuum heating process to produce electricity conductivity on the surface.
![](/userfiles/images/20210208031051350.png)
碳膜電阻 (FCF)
The earliest and most popular type of resistor is carbon film resistor which can be used in almost all kinds of electronic products. The resistive element is a high grade ceramic rod on which a homogenous film of pure carbon is deposited by vacuum heating process to produce electricity conductivity on the surface.
