RESISTOR NETWORK (SIP)
TYPE: 4PIN , 5PIN , 6PIN , 7PIN , 8PIN , 9PIN , 10PIN , 11PIN , 12PIN , 13PIN , 14PIN
RESISTOR NETWORK
SIP TYPE
♦INTRODUCTION
-Thick film resistor networks have Metal Glaze Element on the ceramic substrates with strong chip construction terminal, and they are coated with special epoxy resin. They are the most suitable resistors to meet the density of circuit assembling.
♦APPLICATION
-Control Circuits for V.T.R Computer, Facsimile,Car＆Air-Conditioner.
-Color T.V.＆other Electronic Equipments for consumer use.
♦FEATURES
-Miniature, high density packaging.
-Combinations of different ohmic value are available.
-High reliability with RuO2 paste.

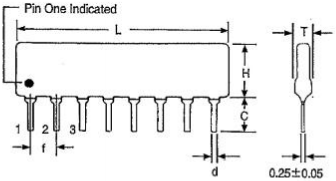

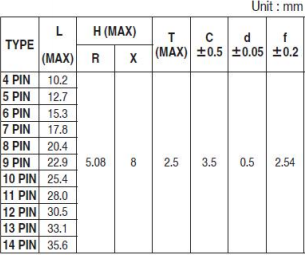

♦DIMENSIONS

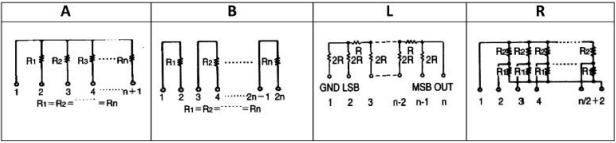

♦CIRCUIT CONSTRUCTION
Thick film resistor networks have Metal Glaze Element on the ceramic substrates with strong chip construction terminal, and they are coated with special epoxy resin. They are the most suitable resistors to meet the density of circuit assembling.
