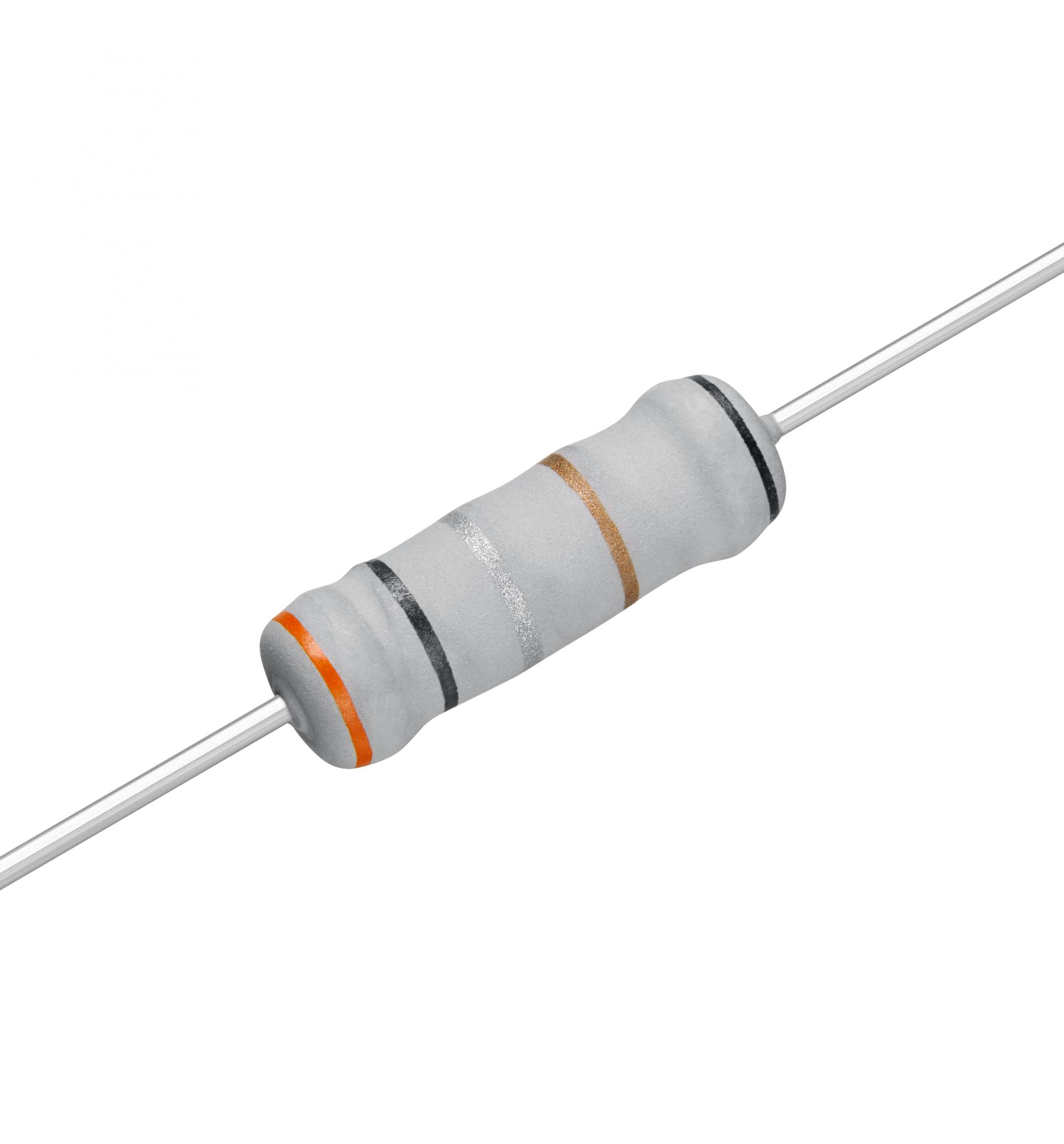

WIRE WOULD RESISTOR (NKNP)
TYPE: NKNP-25 , NKNP-50 , NKNP-50S , NKNP-100S , NKNP-100 , NKNP-200S , NKNP-300S , NKNP-300 , NKNP-400 , NKNP-500S , NKNP-500 , NKNP-500B , NKNP-600 , NKNP-700S , NKNP-700 ,NKNP-800 ,NKNP-1000S ,NKNP-1000
WIRE WOULD RESISTOR
KNP(FLAME-PROOF COATING TYPE)
NKNP(NON-INDUCTIVE TYPE)
♦INTRODUCTYION
KNP
To wind the alkalineless ceramic core with metal alloy resistance wire and coating with silicon resin which
makes wire would resistor KNP series.
♦FEATURES
-High stable pulse characteristics!
-Super heat dissipation!
-Instant overload capability!
-Low noise!
-No annual shift on resistance value!
-Tolerance available: ±5％, ±2％, ±1％
-High voltage and special tight tolerance are
available on request!

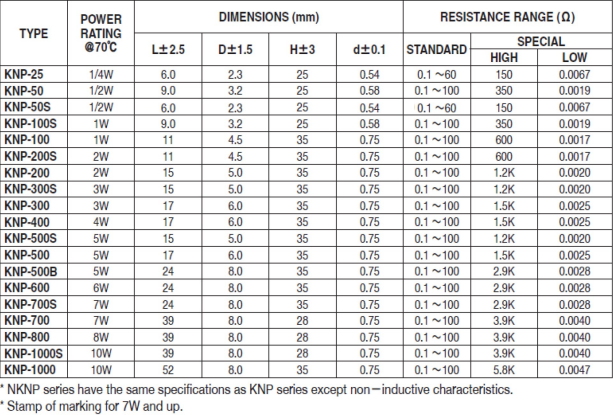

♦SPECIFICATIONS
To wind the alkalineless ceramic core with metal alloy resistance wire and coating with silicon resin which makes
wire wound resistor KNP series.
WIRE WOULD RESISTOR
KNP(FLAME-PROOF COATING TYPE)
NKNP(NON-INDUCTIVE TYPE)
♦INTRODUCTYION
KNP
To wind the alkalineless ceramic core with metal alloy resistance wire and coating with silicon resin which
makes wire would resistor KNP series.
♦FEATURES
-High stable pulse characteristics!
-Super heat dissipation!
-Instant overload capability!
-Low noise!
-No annual shift on resistance value!
-Tolerance available: ±5％, ±2％, ±1％
-High voltage and special tight tolerance are
available on request!
♦SPECIFICATIONS
To wind the alkalineless ceramic core with metal alloy resistance wire and coating with silicon resin which makes
wire wound resistor KNP series.
