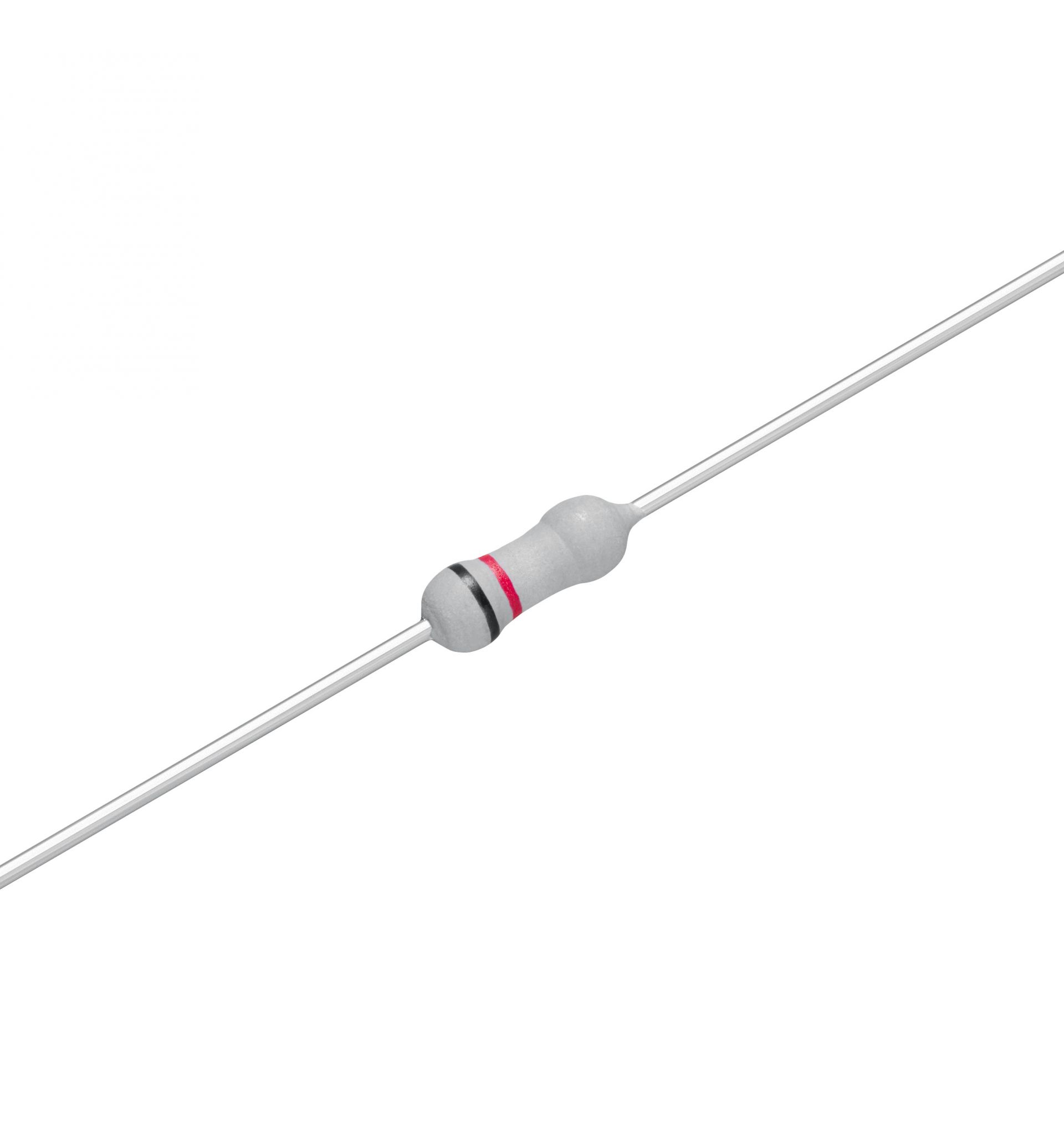

FUSIBLE RESISTOR (RFA)
TYPE: RFA-25 , RFA-50
FUSIBLE RESISTOR
FRN(THIN FILM TYPE) RFB(ANTI-BURST TYPE)
FKN(WIRE WOUND TYPE) RFA(RATED CURRENT TYPE)
♦FRN
♦FEATURES
-Ideal circuit opening controller, disconnecting
units from overload rating specified.
-Flame retardant coating.
-Body coating is in gray or green, with 4 or 5
color bands or stamping.
-Too low or too high ohmic value can only be supplied case by case.

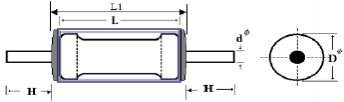

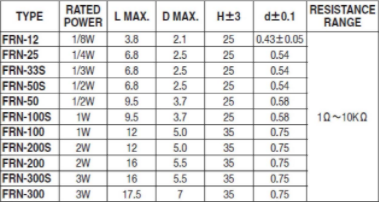

♦RATING＆DIMENSIONS
♦FKN
♦FEATURES
-It is suitable for protecting circuit boards.
-Uniform in fusing time.
-Noncombustible insulation coating.
-Low temperature coefficient.

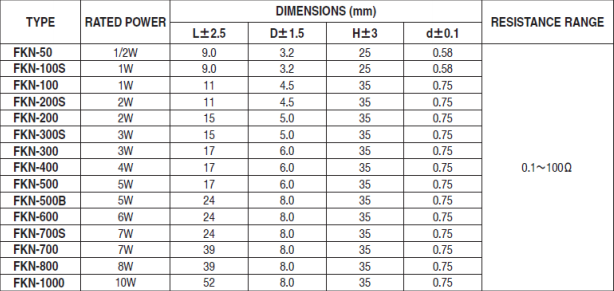

♦RATING＆DIMENSIONS
♦RFB
♦FEATURE
The ANTI-BURST Type wire wound of film-type fusible resistors can provide reliable and environmentally safe fusing behavior It's also reliable in performance and endurance for surge voltage.

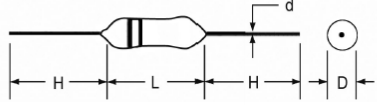

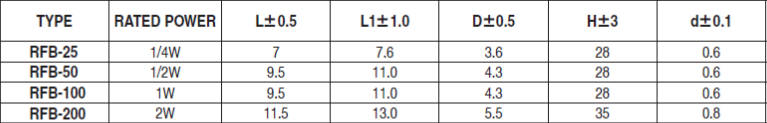

♦DIMENSIONS
♦FRA
♦FEATURES
-The rated current fusible resistor combines time delay
characteristics with proven reliability.
-Big electric current.
-High stability.

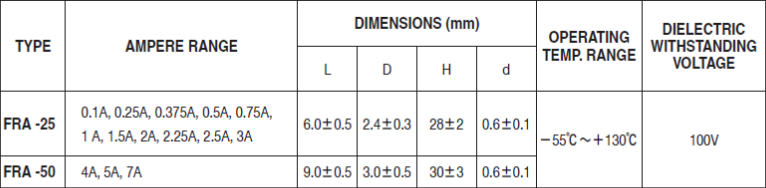

♦RATING＆DIMENSIONS
The rated current fusible combines time delay performance characteristics with the proven reliability of a rated current fusible.
電流式保險絲提供熔斷遲延的性能, 及在定電流作業下的高穩定度.
