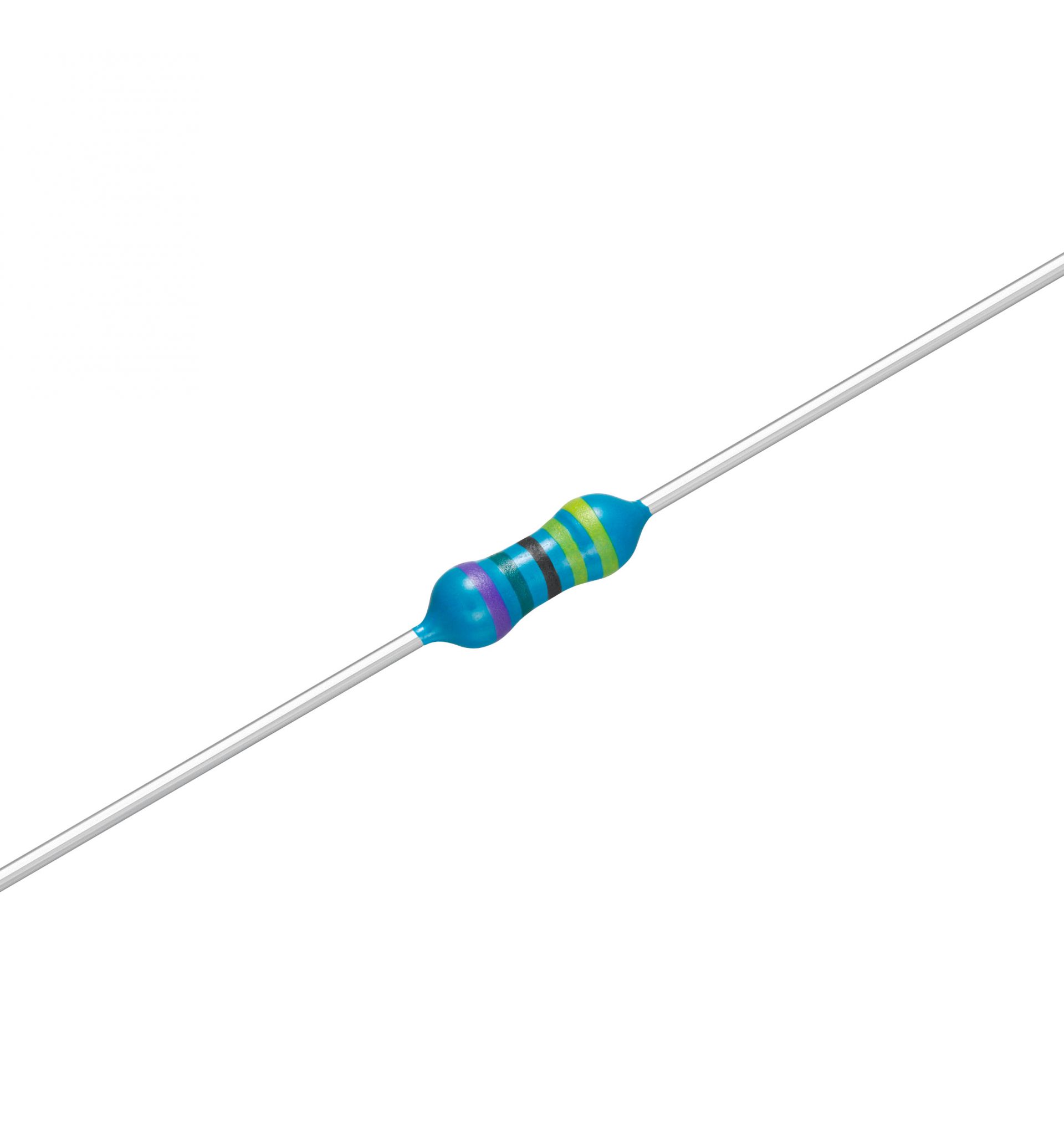

HIGH VOLTAGE RESISTOR (MFH)
TYPE: MFH-25 , MFH-50S , MFH-50 , MFH-100S , MFH-100 , MFH-200S , MFH-200
HIGH VOLTAGE RESISTOR
MFH TYPE
♦INTRODUCTION
MFH type resistors are suitable for high voltage and high impedance applications where high resistance and stability are required.
Consistent quality and reliability is achieved by thick film construction on high-grade ceramic core.Multilayer epoxy coating offers exceptional environmental protection.
MFH resistors are particularly suited in voltage dividers, X-ray equipment, and high voltage power supplies.
♦FEATURES
-Resistance value can be high as 100MΩ
-Metal－glaze elements provide high stable performance against enviromental conditions and overload
-Resistant to heat,humidity& solvents
-Tolerance available：±5%,±1%

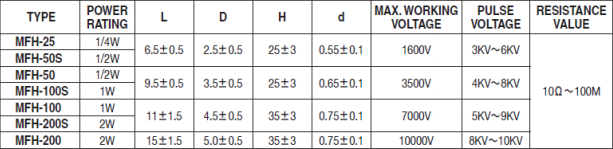

♦DIMENSIONS
精密高壓電阻 (MFH-TYPE) 長期使用壽命與穩定性佳, 阻值範圍 10Ω～<100 MegΩ
The type MFH resistors are suitable for high voltage and high impedance applications where high resistance and stability are required.
HIGH VOLTAGE RESISTOR
MFH TYPE
♦INTRODUCTION
MFH type resistors are suitable for high voltage and high impedance applications where high resistance and stability are required.
Consistent quality and reliability is achieved by thick film construction on high-grade ceramic core.Multilayer epoxy coating offers exceptional environmental protection.
MFH resistors are particularly suited in voltage dividers, X-ray equipment, and high voltage power supplies.
♦FEATURES
-Resistance value can be high as 100MΩ
-Metal－glaze elements provide high stable performance against enviromental conditions and overload
-Resistant to heat,humidity& solvents
-Tolerance available：±5%,±1%
♦DIMENSIONS
精密高壓電阻 (MFH-TYPE) 長期使用壽命與穩定性佳, 阻值範圍 10Ω～<100 MegΩ
The type MFH resistors are suitable for high voltage and high impedance applications where high resistance and stability are required.
