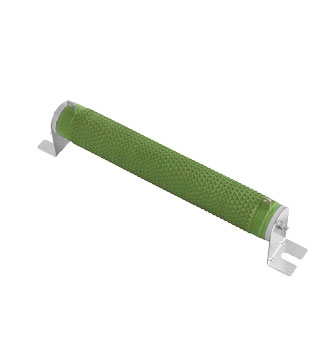

POWER WIREWOUND RESISTOR (QH)
TYPE: QH-120W , QH-150W , QH-180W , QH-225W ,QH-300W , QH-450W , QH-600W
POWER WIREWOUND RESISTOR

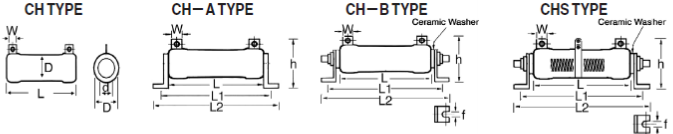

CH＆QH TYPE
♦FEATURES
-High resistance to heat, small resistance temp. coefficient and the change in resistance
with temperature is being linear.
-Resistance value unchanged after long use, good resistivity to short time overload.
-Small in size but capable of carrying high power load.
-Multi-terminal types and variable types available on request.

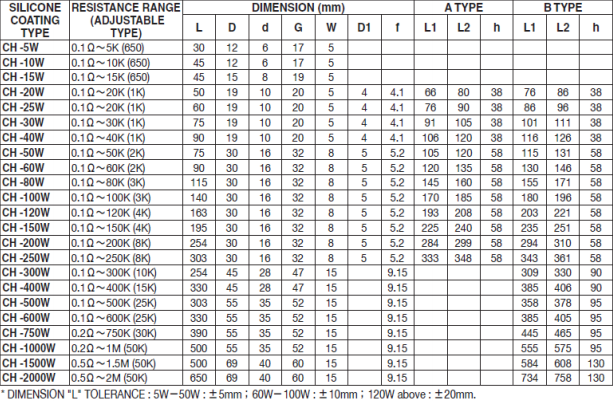

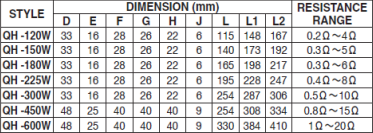

♦RATING＆GENERAL SPECIFICATION
♦RIBBON WIREWOUND RESISTORS
Resistance value unchanged after long use, good resistance to short time overload.
Small in size but capable of carrying high power load.
Multi-terminal types and variable types available on request.
POWER WIREWOUND RESISTOR
CH＆QH TYPE
♦FEATURES
-High resistance to heat, small resistance temp. coefficient and the change in resistance
with temperature is being linear.
-Resistance value unchanged after long use, good resistivity to short time overload.
-Small in size but capable of carrying high power load.
-Multi-terminal types and variable types available on request.
♦RATING＆GENERAL SPECIFICATION
♦RIBBON WIREWOUND RESISTORS
Resistance value unchanged after long use, good resistance to short time overload.
Small in size but capable of carrying high power load.
Multi-terminal types and variable types available on request.
