METAL OXIDE FILM RESISTOR (MO)
TYPE: MO-12 , MO-25S , MO-25 , MO-50S , MO-50 , MO-100S , MO-100 , MO-200S , MO-200 , MO-300S , MO-300 , MO-300B , MO-400 , M0-500S , M0-500 , MO-500B , MO-700 , MO-700B , MO-1000 , MO-1000S

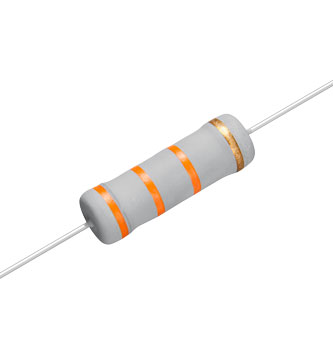

METAL OXIDE FILM RESISTOR
MO (FLAME-PROOF COATING TYPE)
♦INTRODUCTION
Liquid SnCI 4 heated to 400～700℃ and sprayed on ceramic rod to make it a thin film on the surface of rod.
Then SbCI 3 added to make it acid film. As the film is strong metal oxided, it will last for years with very little change of resistance. SYNTON-TECH’s MO series are especially suitable for the requirements of large load or high temperature operation.
♦FEATURES
-Excellent long-term stability and reliability!
-Met MIL-R-22684B requirements!
-Extremely low for annual shift!
-Excellent flame retardant coating with “ Freon ” resistant performance!
-Can produce high resistance value to replace wire wound resistor with lower cost!
-Tolerance available: ±5%, ±2%, ±1%
-Voltage available: 1/8W, 1/4W, 1/2W, 1W, 2W, 3W, 4W, 5W, 7W, 10W
-Based on application concerns, MO rods can be replaces by CR or MF rods.

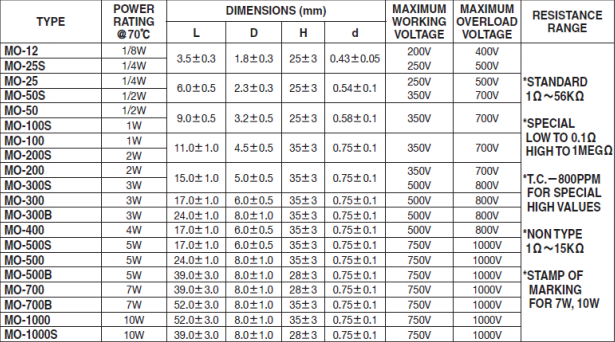

♦SPECIFICATIONS
Liquid SnCI 4 heated 400~700℃ and sprayed on ceramic rod and became a thin film on the surface of rod. Then SbCI 3 added to make it acid film. As the film is strong metal oxided, it will last for years with very little change of resistance. SYNTON-TECH's MO series are especially fit for the requirements of large load or high temperature operation.
esistance value.
METAL OXIDE FILM RESISTOR
MO (FLAME-PROOF COATING TYPE)
♦INTRODUCTION
Liquid SnCI 4 heated to 400～700℃ and sprayed on ceramic rod to make it a thin film on the surface of rod.
Then SbCI 3 added to make it acid film. As the film is strong metal oxided, it will last for years with very little change of resistance. SYNTON-TECH’s MO series are especially suitable for the requirements of large load or high temperature operation.
♦FEATURES
-Excellent long-term stability and reliability!
-Met MIL-R-22684B requirements!
-Extremely low for annual shift!
-Excellent flame retardant coating with “ Freon ” resistant performance!
-Can produce high resistance value to replace wire wound resistor with lower cost!
-Tolerance available: ±5%, ±2%, ±1%
-Voltage available: 1/8W, 1/4W, 1/2W, 1W, 2W, 3W, 4W, 5W, 7W, 10W
-Based on application concerns, MO rods can be replaces by CR or MF rods.
♦SPECIFICATIONS
Liquid SnCI 4 heated 400~700℃ and sprayed on ceramic rod and became a thin film on the surface of rod. Then SbCI 3 added to make it acid film. As the film is strong metal oxided, it will last for years with very little change of resistance. SYNTON-TECH's MO series are especially fit for the requirements of large load or high temperature operation.
esistance value.
