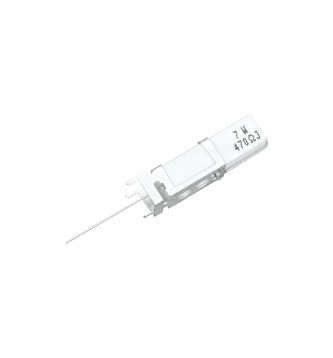

CEMENT POWER RESISTOR (SQS)
TYPE: SQS-5 , SQS-7 , SQS-10 , SQS-20 , SQS-30S , SQS-40SS
CEMENT POWER RESISTOR
SQP (STANDARD TYPE)
SQM (RADIAL TYPE)
SQT (AXIAL)
SQZ(PCB MOUNTING TYPE)
SQH SQS (CLAMP MOUNTING TYPE)
SQF (FLAT TYPE)
♦INTRODUCTION
Cement resistors are manufactured by winding the ceramic rods with metal alloy resistance wire and put it into
a fireproof ceramic box then concrete with non-flammable and heat-resistant cement.
♦FEATURES
-Heat and flame resistant!
-The completely insulated characteristic is suitable for printed circuit board.
-For high resistance value, the winding core will be replaced by metal oxide film cutting core (RS type).
-High voltage type and non-inductive type are available on request!
♦SQP
![](/userfiles/images/20210208032930572.png)
![](/userfiles/images/20210208032930895.png)
♦SQT
![](/userfiles/images/20210208032930568.png)
![](/userfiles/images/20210208032930702.png)
♦SQZ
![](/userfiles/images/20210208032930831.png)
![](/userfiles/images/20210208032930274.png)
♦SQHG
![](/userfiles/images/20210208032931451.png)
![](/userfiles/images/20210208032931474.png)
♦SQS
![](/userfiles/images/20210208032931712.png)
![](/userfiles/images/20210208032932378.png)
♦SQM
![](/userfiles/images/20210208032932109.png)
![](/userfiles/images/20210208032932223.png)
♦FEATURES
-Low inductance.
-Safety flameproof construction.
-Thin lightweight body saves the PCB space considerably.
-Tolerance available: ±10%, ±5%, ±2%
♦SQF
![](/userfiles/images/20210208032932208.png)
![](/userfiles/images/20210208032932270.png)
Cement resistors are manufactured by winding the ceramic rods with metal alloy resistance wire and put it into a fireproof ceramic box then concrete with non-flammable and heat-resistant cement.
