FUSIBLE RESISTOR (FKN)
TYPE: FKN-50 , FKN-100S , FKN-100 , FKN-200S , FKN-200 , FKN-300S , FKN-300 , FKN-400 , FKN-500 , FKN-500B , FKN-600 , FKN-700S , FKN-700 , FKN-800 , FKN-1000
FUSIBLE RESISTOR
FRN(THIN FILM TYPE) RFB(ANTI-BURST TYPE)
FKN(WIRE WOUND TYPE) RFA(RATED CURRENT TYPE)
♦FRN
♦FEATURES
-Ideal circuit opening controller, disconnecting
units from overload rating specified.
-Flame retardant coating.
-Body coating is in gray or green, with 4 or 5
color bands or stamping.
-Too low or too high ohmic value can only be supplied case by case.

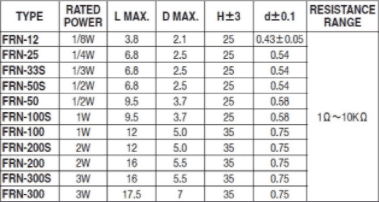

♦RATING＆DIMENSIONS

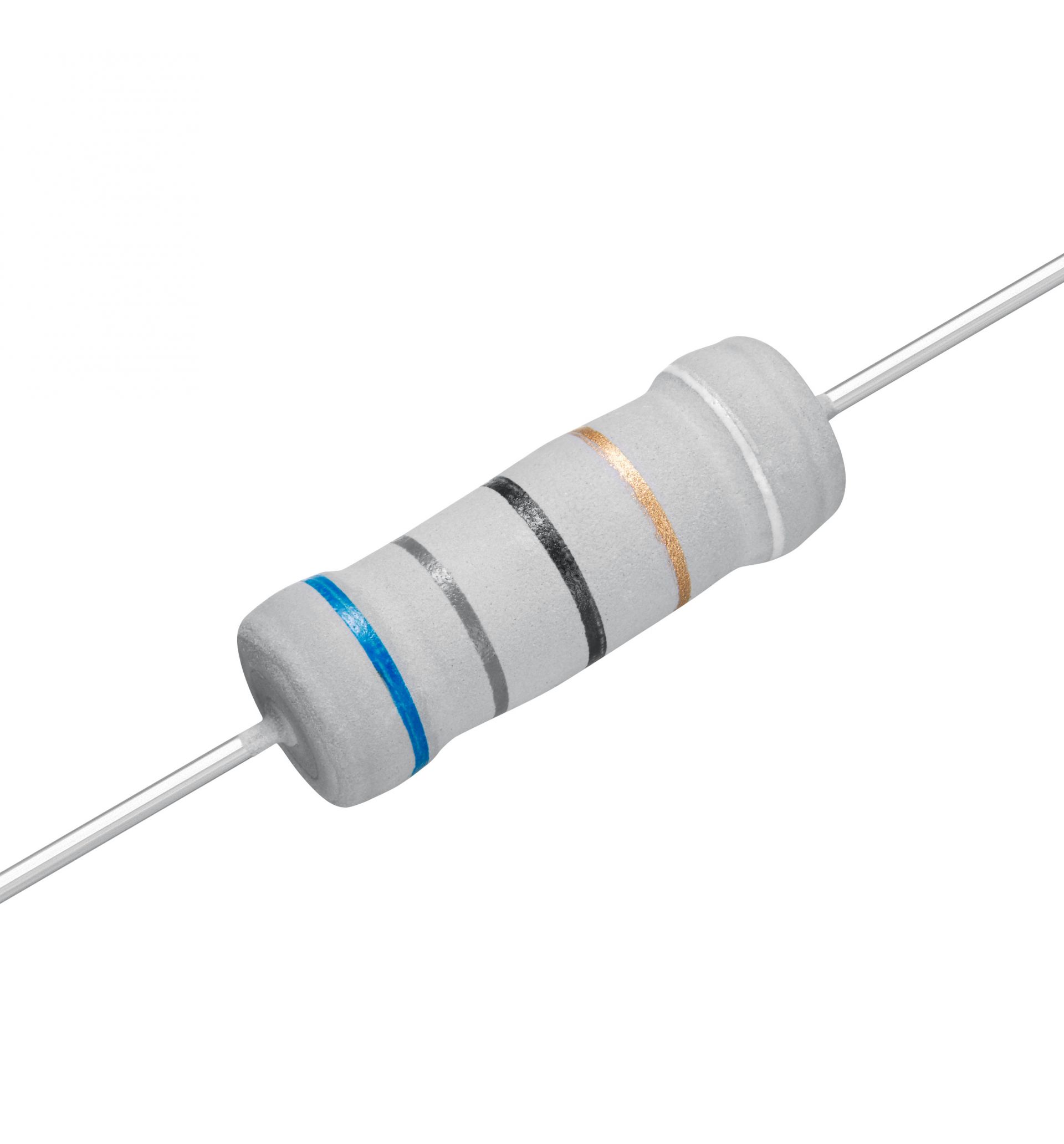

♦FKN
♦FEATURES
-It is suitable for protecting circuit boards.
-Uniform in fusing time.
-Noncombustible insulation coating.
-Low temperature coefficient.

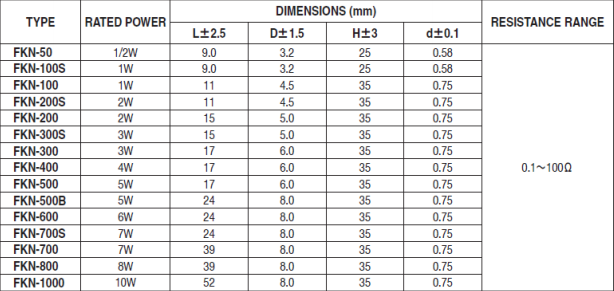

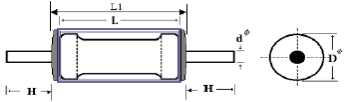

♦RATING＆DIMENSIONS
♦RFB
♦FEATURE
The ANTI-BURST Type wire wound of film-type fusible resistors can provide reliable and environmentally safe fusing behavior It's also reliable in performance and endurance for surge voltage.

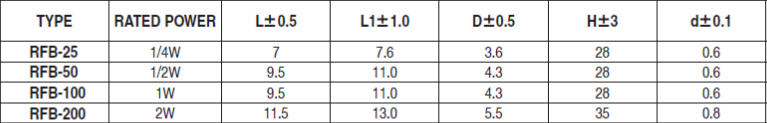

♦DIMENSIONS
♦FRA
♦FEATURES
-The rated current fusible resistor combines time delay
characteristics with proven reliability.
-Big electric current.
-High stability.

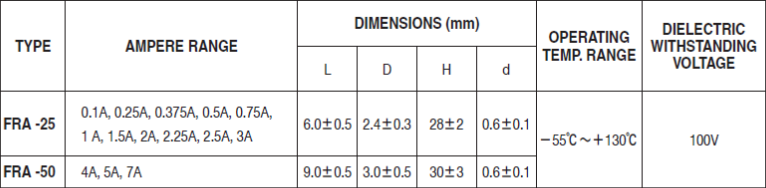

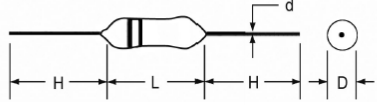

♦RATING＆DIMENSIONS
Ideal circuit opening controller, disconnecting units from overload rating specified.
Flame retardant coating.
Body coating is in gray or green, with 4 or 5 color bands or stamping.
Too low or too high ohmic value can be supplied only case by case.
