METAL FILM MELF RESISTOR (MEMF)
TYPE: MEMF-12 , MEMF-25S , MEMF-50S , MEMF-100S , MEMF-100SS , MEMF-100S , MEMF-200SS

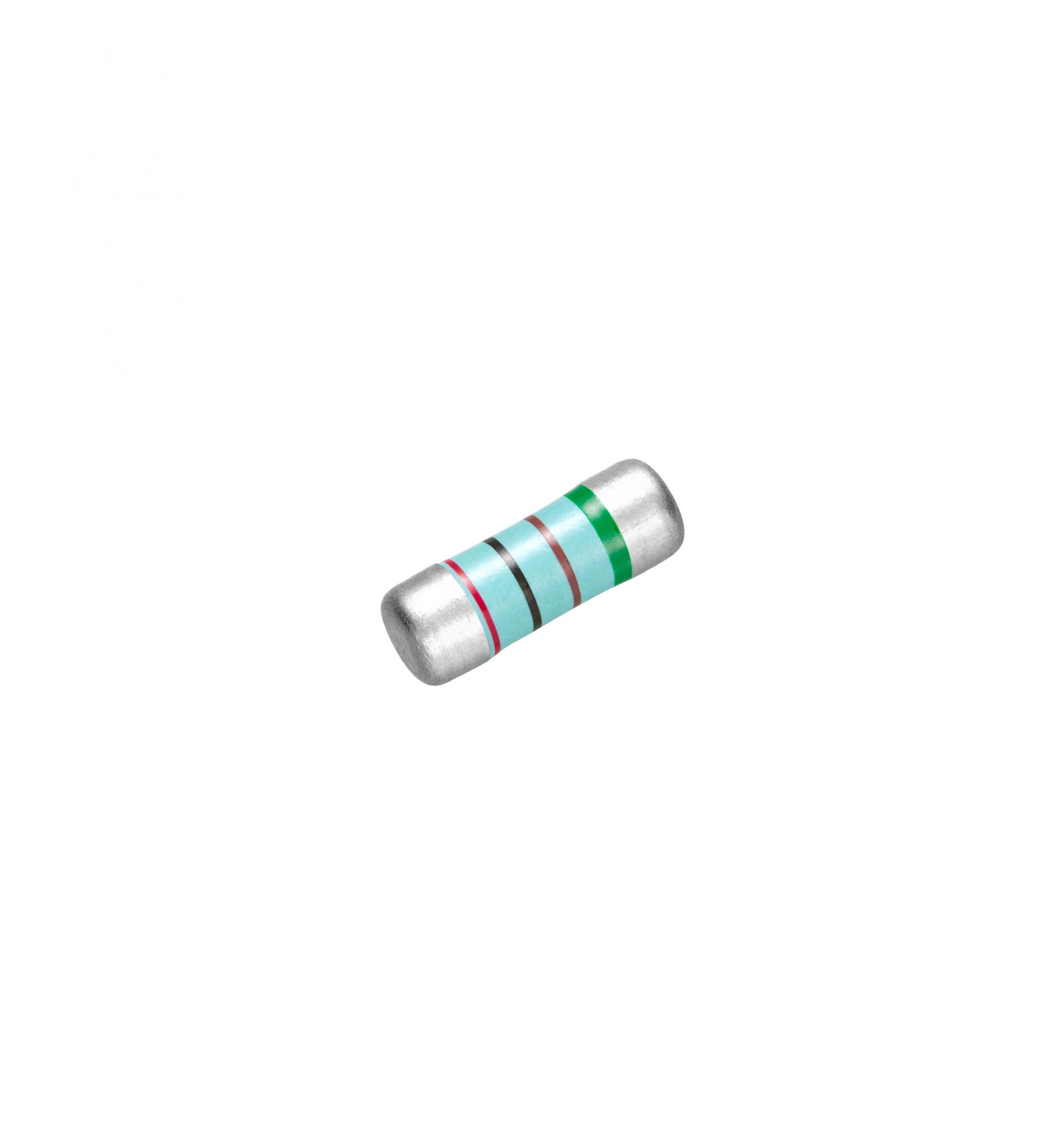

METAL FILM MELF RESISTOR
MEMF TYPE
♦FEATURES
-SMD style metal resistor.
-High accuracy guaranteed(tolerance±0.1% & T.C.R. ±5PPM/℃)
-Free direction for mounting due to cylindrical design.
-Electrode strength is higher than flat chip resistor.
-Lower current noise than thick film flat chip resistor.
-Suitable for reflow, flow and iron soldering.

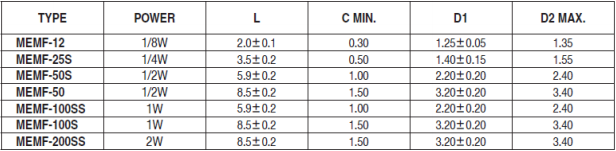

♦DIMENSIONS

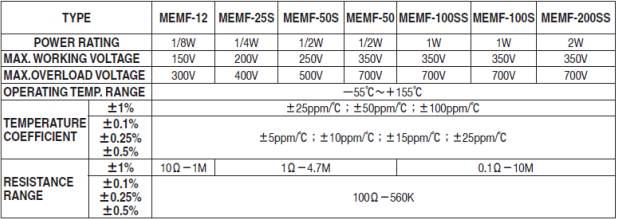

♦RATINGS

SMD style metal resistor.
High accuracy guaranteed. (tolerance ±0.1% & T.C.R.5PPM/℃)
Free direction for mounting due to cylindrical design.
METAL FILM MELF RESISTOR
MEMF TYPE
♦FEATURES
-SMD style metal resistor.
-High accuracy guaranteed(tolerance±0.1% & T.C.R. ±5PPM/℃)
-Free direction for mounting due to cylindrical design.
-Electrode strength is higher than flat chip resistor.
-Lower current noise than thick film flat chip resistor.
-Suitable for reflow, flow and iron soldering.

♦DIMENSIONS

♦RATINGS

SMD style metal resistor.
High accuracy guaranteed. (tolerance ±0.1% & T.C.R.5PPM/℃)
Free direction for mounting due to cylindrical design.
